The base station is powered by a 5V 1.2A power supply, which the outdoor sensor requires 3 microcells (AA, recommend using Li-ion batteries). The base station can also be operated alternatively with 3 microcells (AAA, alkaline or Li-ion). Since previous settings will be reset when plugged out, we recommend installing the batteries for the base station. The batteries then serve as a backup e.g. in case of power outages or similar. (Please note: no AAA batteries can be charged with the device.)

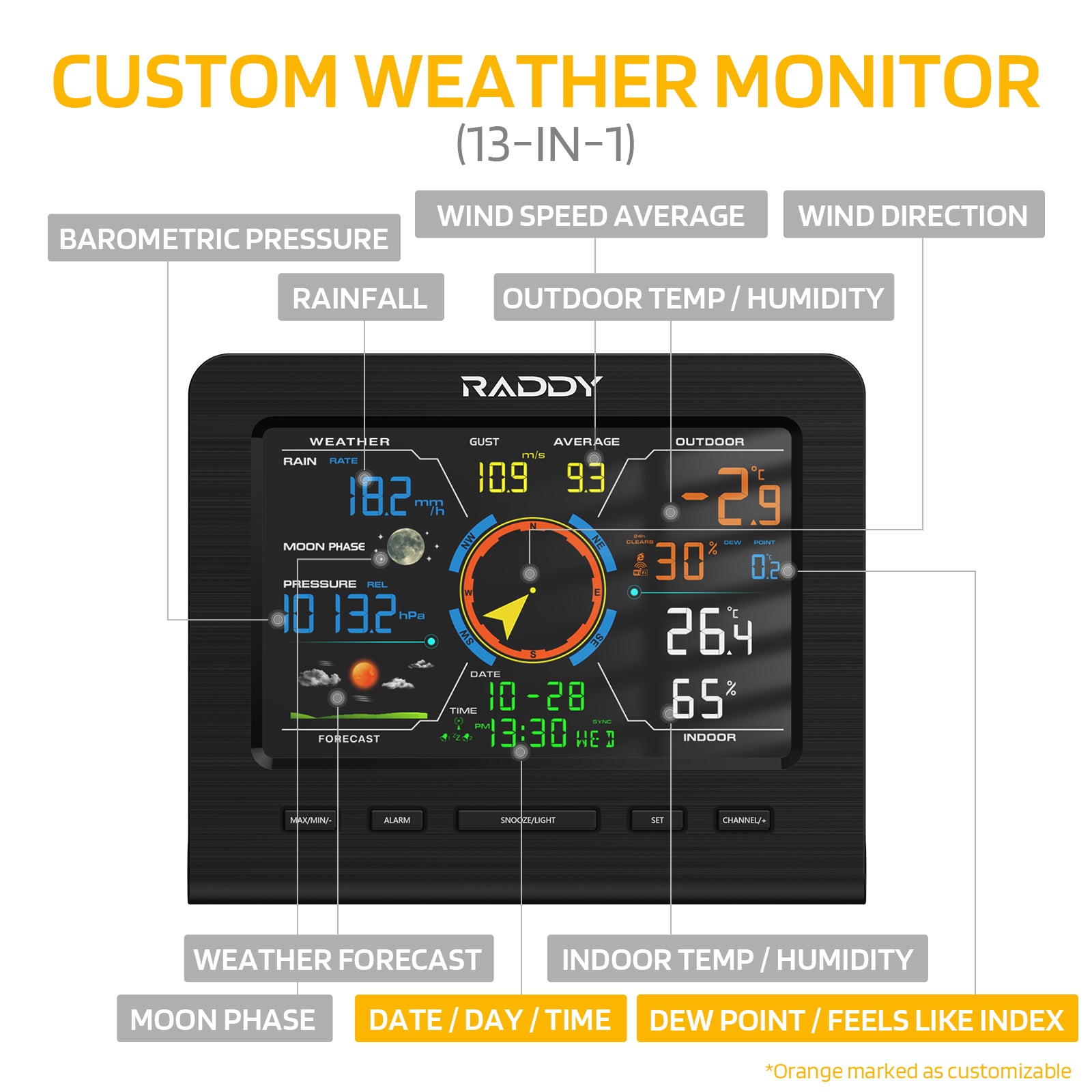

Get exclusive weather information in your located area like never before! Easily keep track of indoor&outdoor temperature and humidity, trends, wind gusts, rainfall data and also the weather forecast in 12h. Helps you arrange your day better! Note: We recommend the low-temperature resistant batteries in winter as the performance of normal batteries will be weakened and affect the sensor signal strength when the temperature is below -10℃(14℉).

The backlight can be adjusted to 3 brightness levels by touching the top “Snooze/Light” key, and can also set a time period for auto dim mode, which meets different needs when using.

The WF-100C Lite is able to set up custom alarm values for high/low temperature, humidity feels like temperature, rainfall, wind, air pressure, dew point, etc. When conditions exceed your preset values, the console will alert you. An invaluable tool in natural disaster-prone areas (hurricane/tornado/wildfire).
What's in the box?
- 1 x Display Console
- 1 x Outdoor Sensor
- 1 x Thermo-hygrometer Remote Sensor
- 1 x Mounting Bracket Back Plate
- 1 x Mounting Pole
- 1 x Foot Mounting
- 1 x 100…240V AC Power Adapter
Accessories
- 2 x Screws and Nuts M3 x 29mm
- 4 x Screws and Nuts M5 x 35mm
- 4 x Universal Screws M4 x 35mm
- 1 x User Manual
- 1 x Wi-Fi Setup Guide
Specifications
- Temperature Range: Indoor sensor: 32 to 140 °F(0℃ to 60℃), Outdoor sensor: -40 to 149 °F(-40℃ to 65℃), Remote sensor: -40 to 140 °F(0℃ to 60℃)
- Humidity Range Indoor: 10 to 99 %, Outdoor sensor: 10 to 99 %, Remote sensor: 10 to 99 %
- Wind Direction Range: 0 - 360 º
- Wind Speed Range: 0 to 112mph
- Barometric Pressure Range: 8.85 to 32.50 inHg
- Display Console Dimensions: Frame Dimensions (L x W x H): 6.4" x 0.7" x 5.3"(16.3 cm x 1.8 cm x 13.5 cm)
- LCD Dimensions (L x W): 5.0" x 3.1"(12.7 cm x 7.9 cm)
- WiFi Console RF Frequency: 2.4 GHz/802.11 b/g/n with IPV4 protocol
- Data TX/RX Frequency: 433 MHz
- Range (Console and sensors): Up to 300 feets(100m)
- Range (Console & Wi-Fi router): Up to 80 feets(25m)
