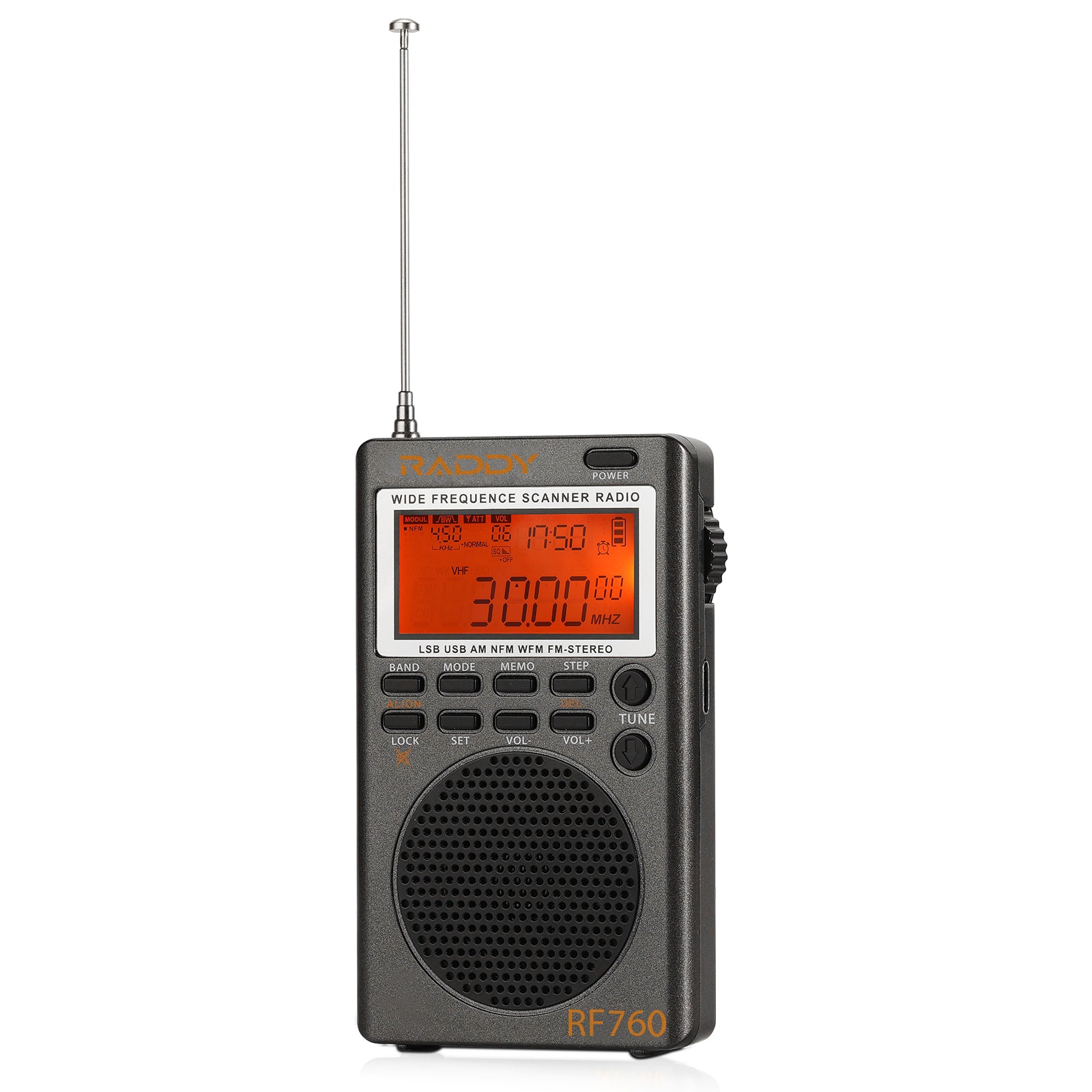

Front view of the RF760 Full Band SSB SW Radio
RF760 supports multi-band receive

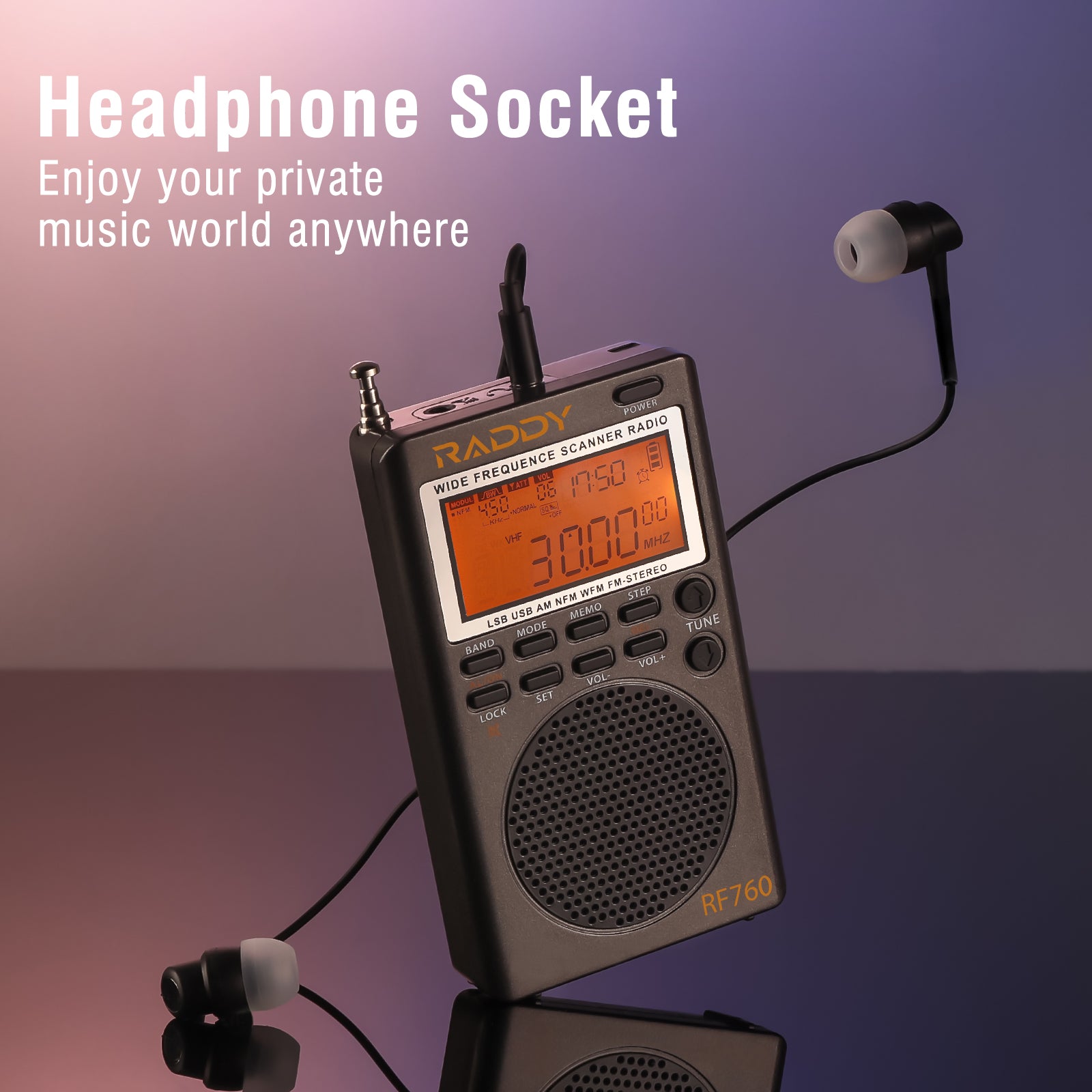

RF760 comes with 3.5mm headphone socket
RF760 comes with 1000 mAh battery

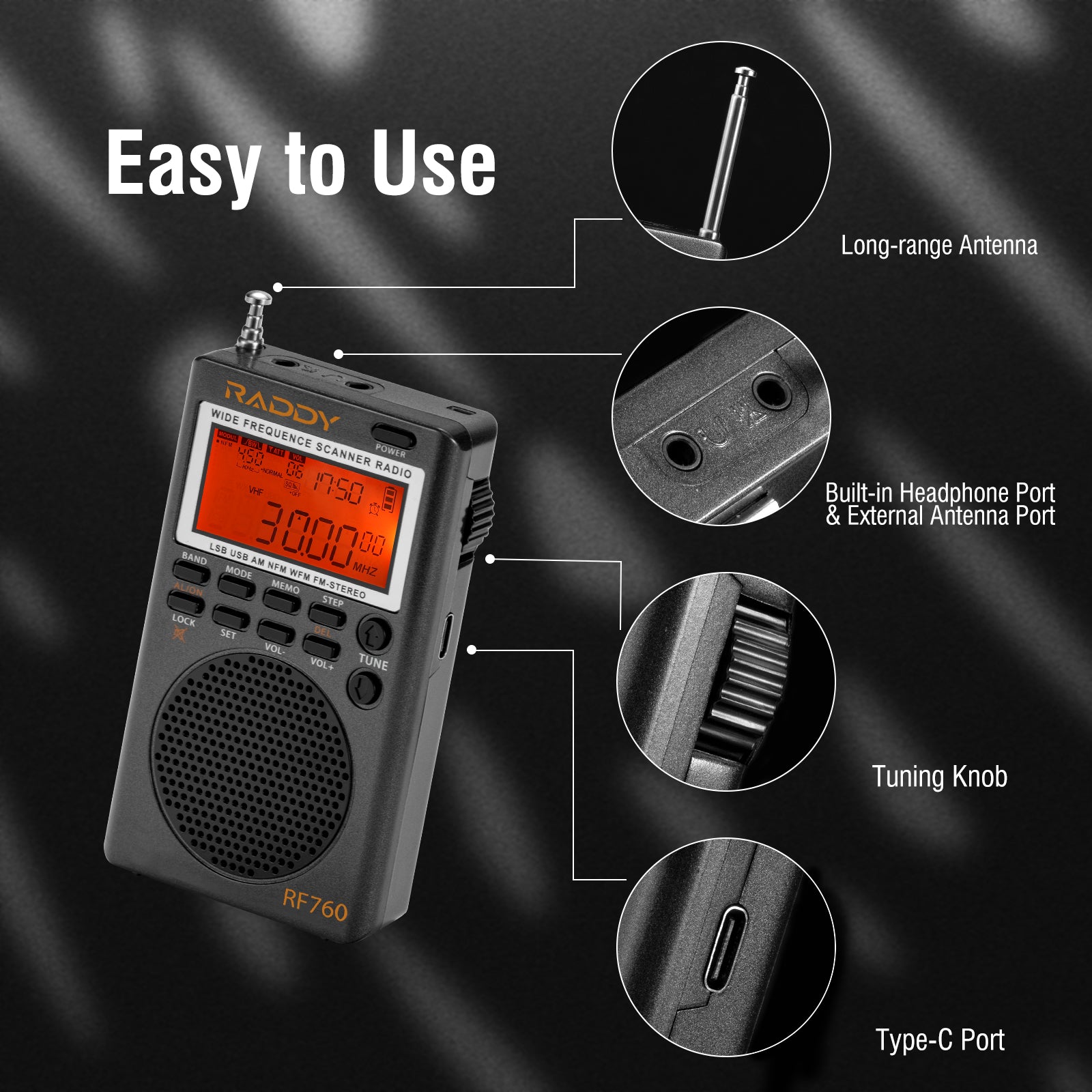

RF760 Full Band SSB SW Radio details
RF760 high memory capacity

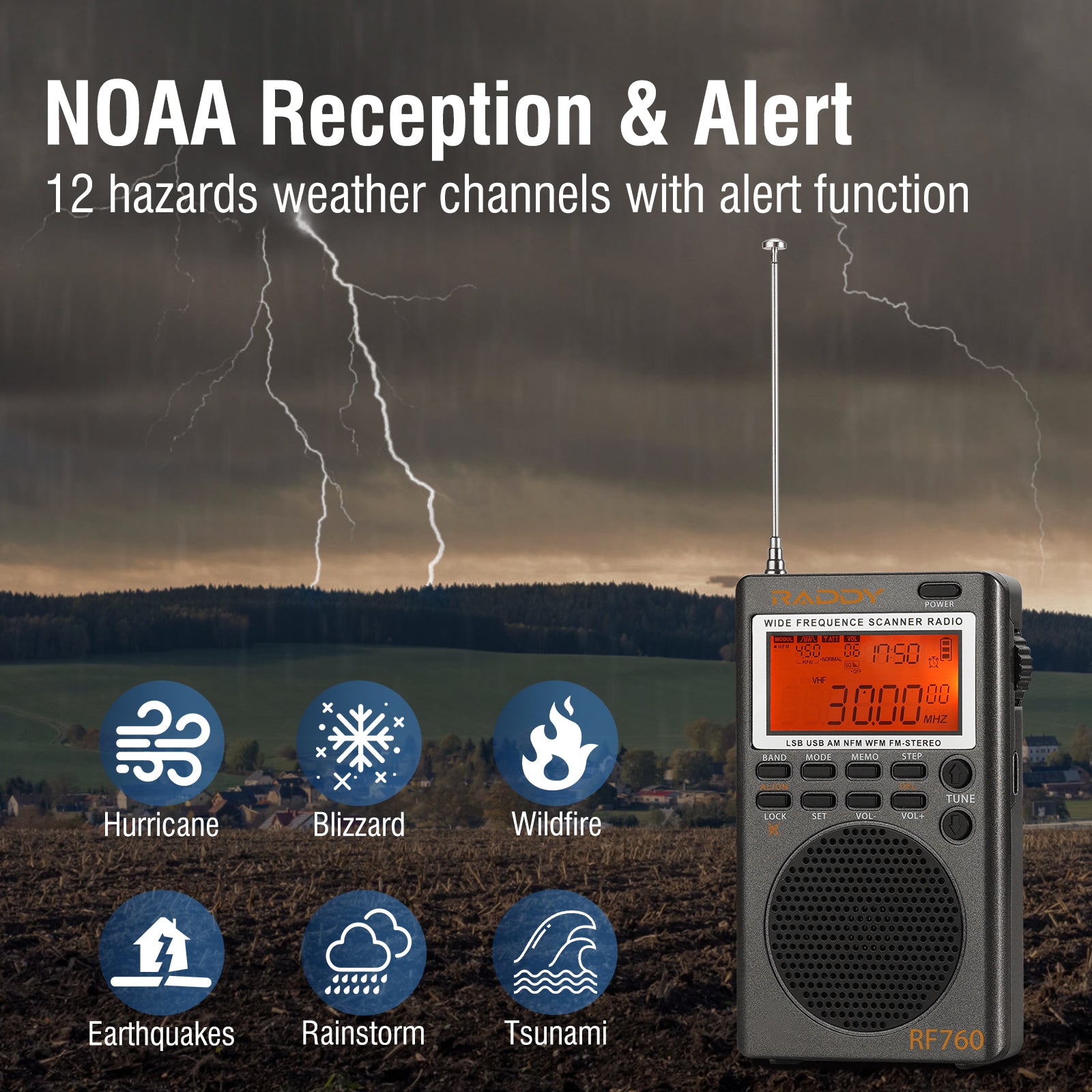

RF760 supports NOAA reception & alert
RF760 Full Band SSB SW Radio
RF760 Full Band SSB SW Radio Size
RF760 Full Band SSB SW Radio antenna size
RF760 Full Band SSB SW Radio package content
Load image into Gallery viewer, Front view of the RF760 Full Band SSB SW Radio
Load image into Gallery viewer, RF760 supports multi-band receive
Load image into Gallery viewer, RF760 comes with 3.5mm headphone socket
Load image into Gallery viewer, RF760 comes with 1000 mAh battery
Load image into Gallery viewer, RF760 Full Band SSB SW Radio details
Load image into Gallery viewer, RF760 high memory capacity
Load image into Gallery viewer, RF760 supports NOAA reception & alert
Load image into Gallery viewer, RF760 Full Band SSB SW Radio
Load image into Gallery viewer, RF760 Full Band SSB SW Radio Size
Load image into Gallery viewer, RF760 Full Band SSB SW Radio antenna size
Load image into Gallery viewer, RF760 Full Band SSB SW Radio package content
RF760 Full Band SSB SW Radio
$62.99 Regular price $78.99 Sale price
Unit price  per
Ships Within 2 Days

Shipping calculated at checkout.

RF760 Review

RF760 Review


Upgraded Raddy RF760: We added an adjustable bandwidth in SSB mode, an external 9.7ft wire antenna with a 3.5mm connector to improve SW reception, and upgraded sound quality for a better listening experience.

Full-band Radio with SSB: This tiny radio can receive AM, FM, CB, WX, and NOAA Weather bands plus Alert, Shortwave (2-30MHz) with SSB and UHF, VHF, and Airband. Using SSB, it can reach long-range and pick up worldwide stations when internet or satellite is not available.

Ideal Radio for SW Listeners! This radio allows fully automatic or manual search and storage of up to 700 stations. It also features a knob for fine-tuning stations, making it easy to select the exact channel you want.

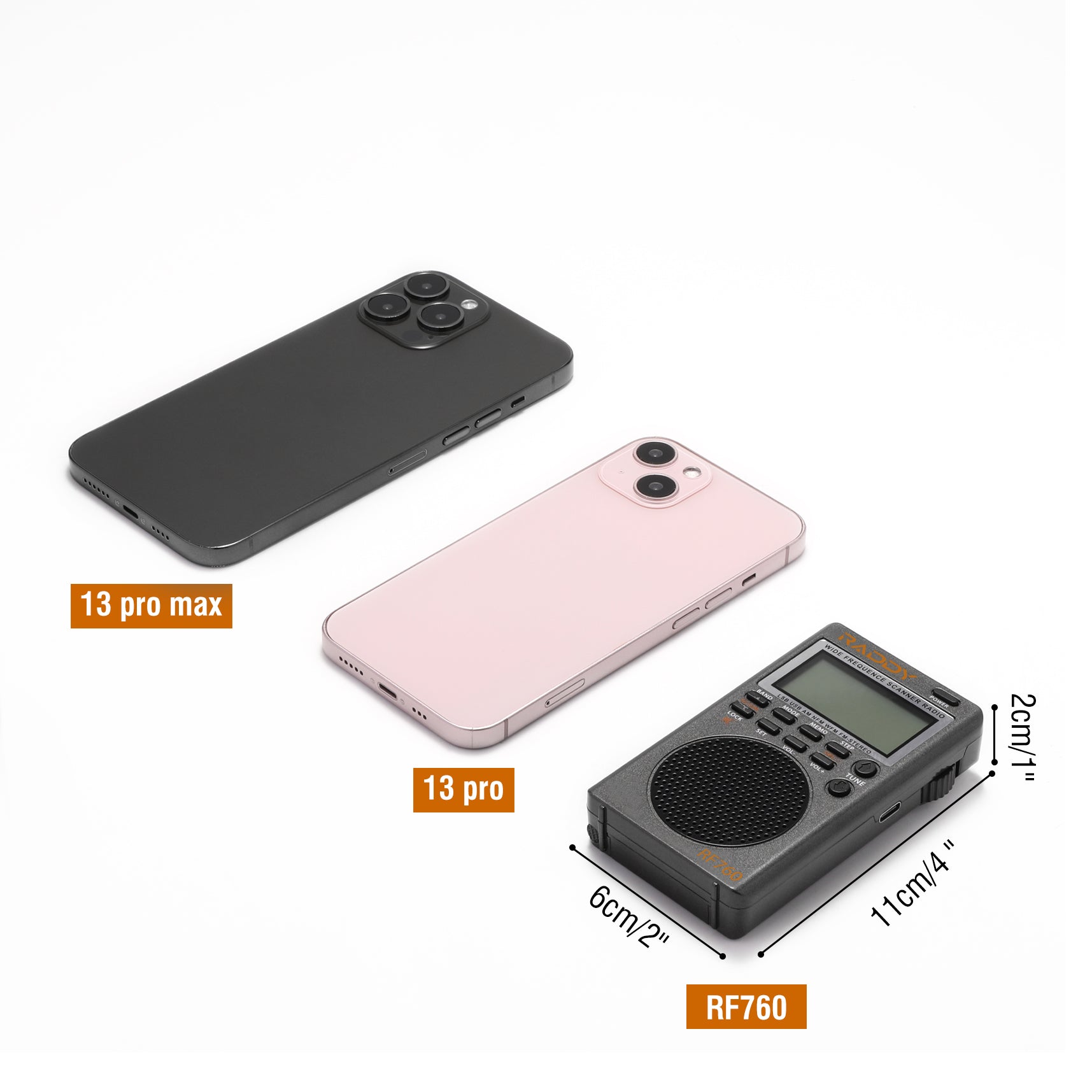

EDC and Bug-Out Bags: The RF760 world band shortwave radio is surprisingly small and light. Its dimension is 4.4 x 2.4 x 0.8’’ / 11.1 x 6 x 2CM while only weighing 0.46lbs/0.25kg.

Two 3.5mm Accessories: The RF760 comes with an earphone for private listening and a 9.7ft external wire antenna for more stable reception.

Check out and download the user manual on the download area.

Warranty
Returns
Shipping
WHAT'S IN THE BOX?
Raddy RF760 Full Band SSB SW Radio

Why Choose Raddy RF760?

  • Add adjustable bandwidth in SSB mode
  • Add an external wire antenna with a 3.5mm connector to improve the SW reception quality
  • Upgrade the sound quality for a better listening experience
  • Include NOAA broadcast and weather hazards alert
Raddy RF760 | 2 Ways of Power Source
2 Ways of Power Source

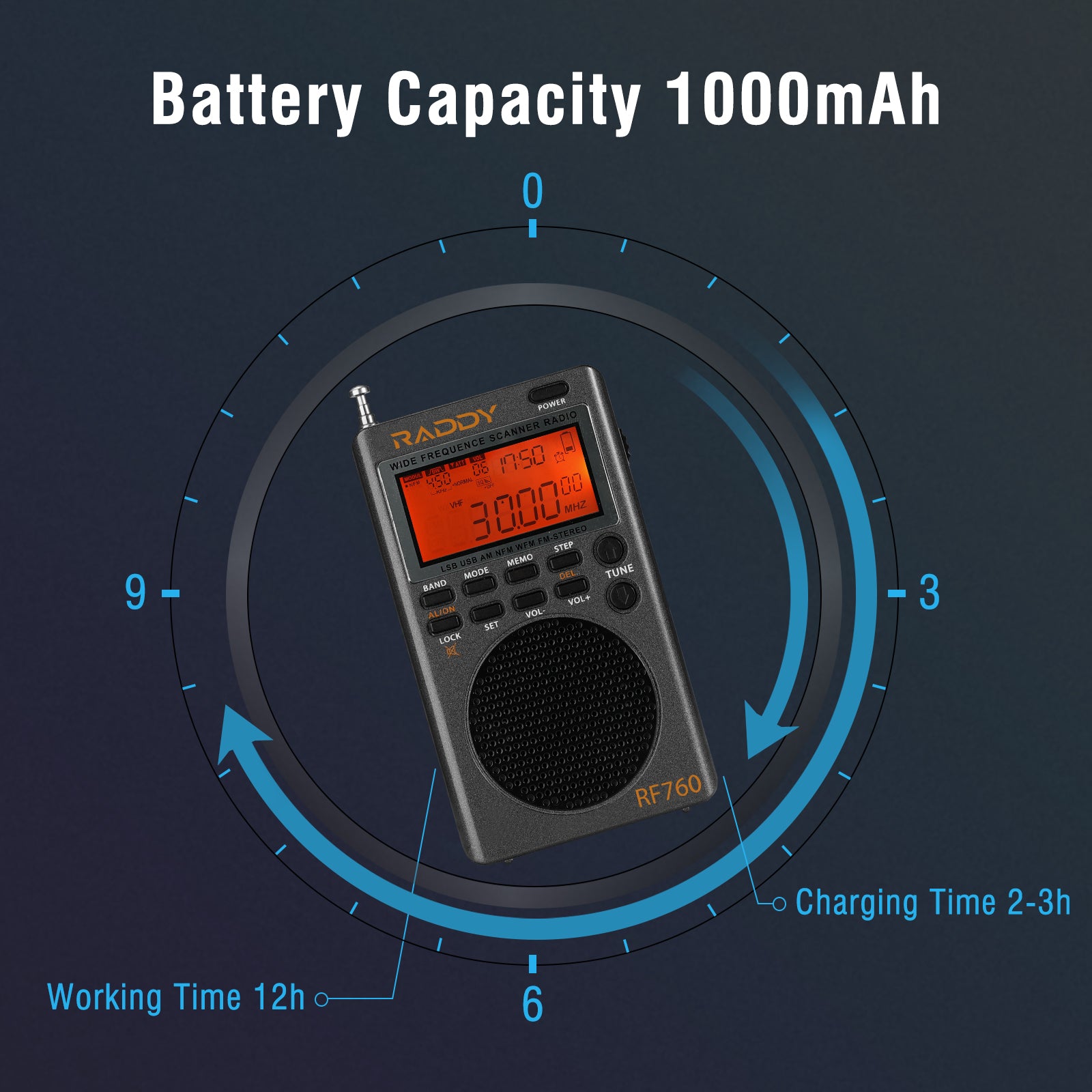

RF760 uses a standard 1000mAh BL-5C battery, which is safe and easy to find in the market. In addition, you can recharge the radio directly by using the included USB-C cable.

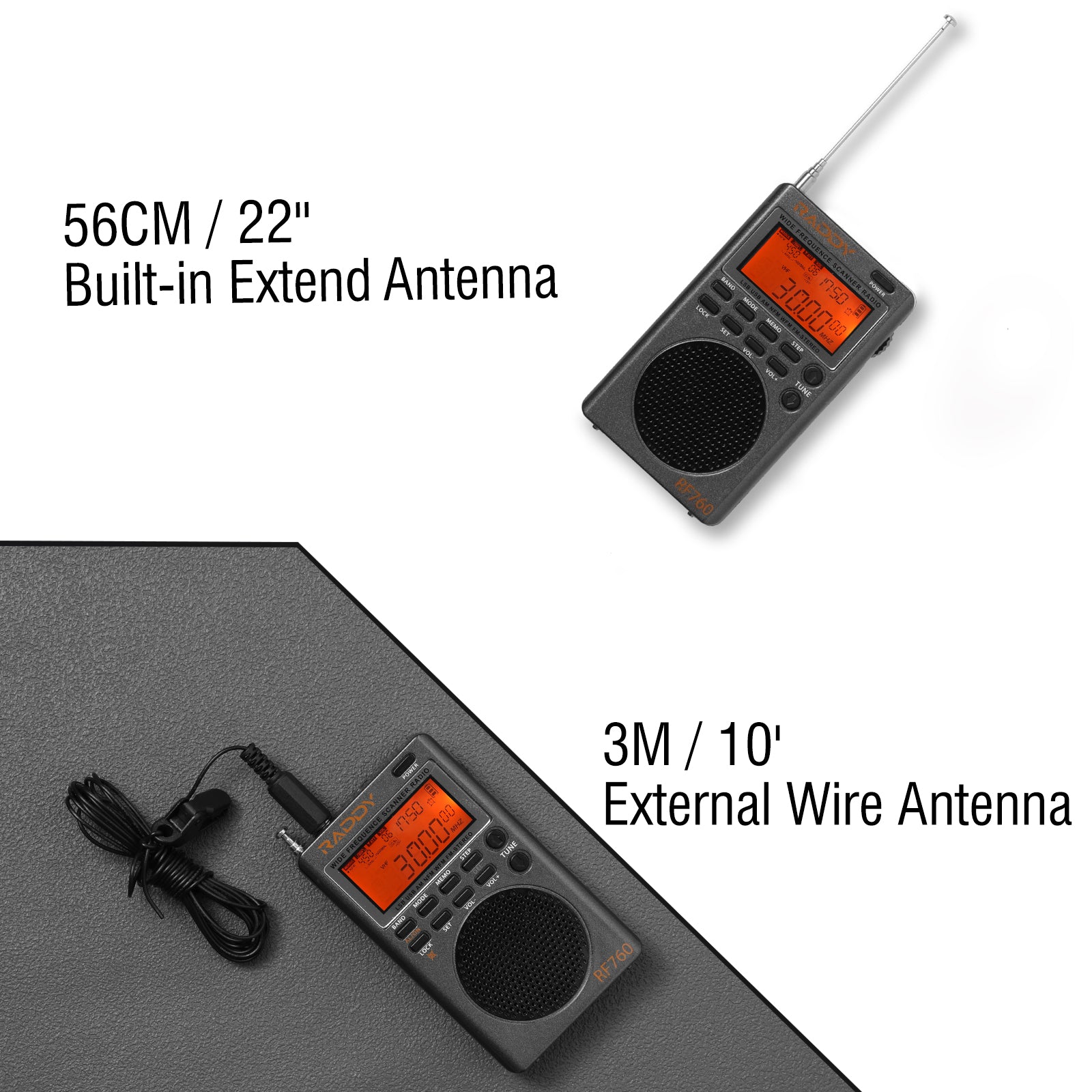

Raddy RF760 | 1+1 Antenna
1+1 Antenna

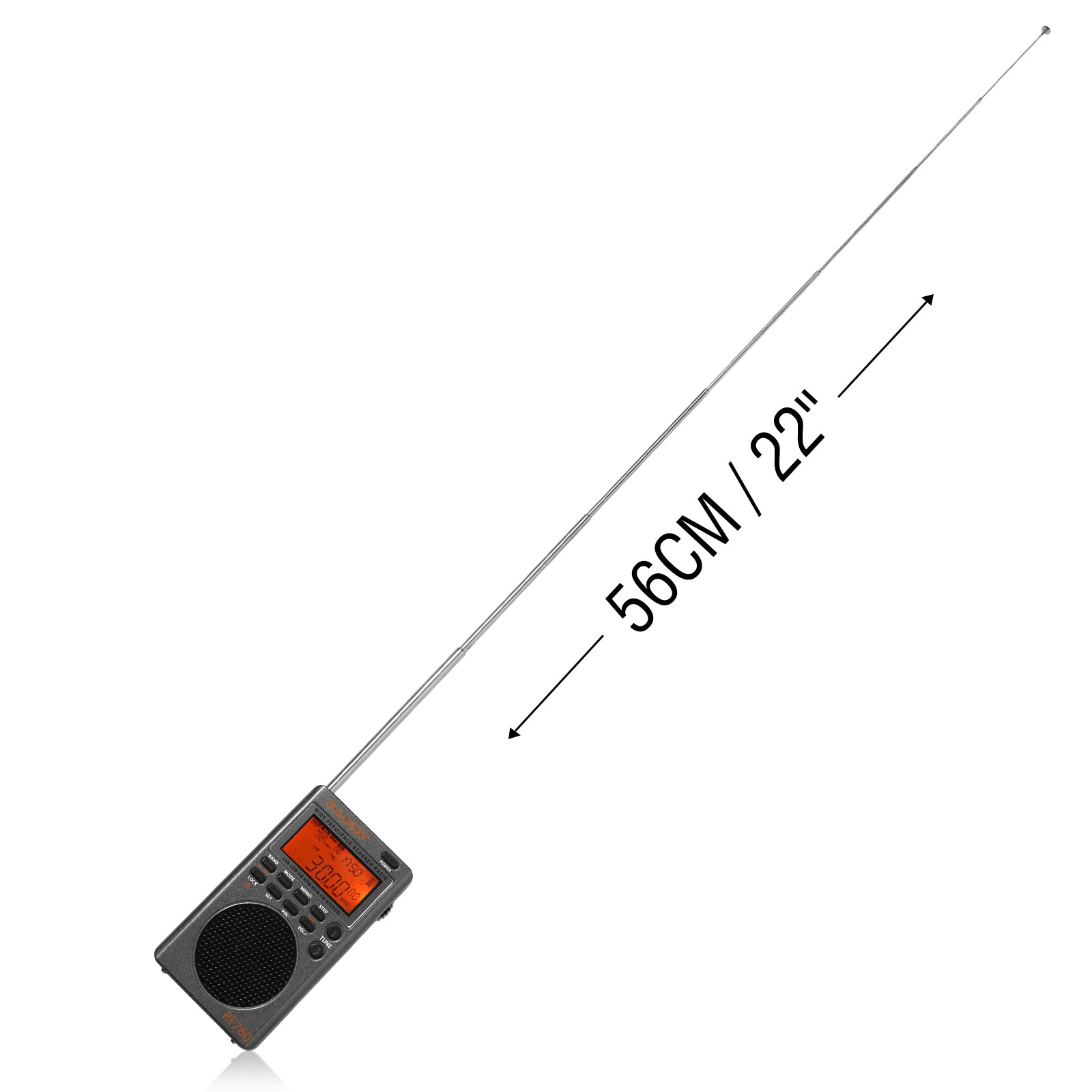

This SSB shortwave radio comes with a built-in extendable 22'' / 56CM antenna and a supplied external soft antenna with a 3.5mm connector. Pull out the rod antenna when you listen to FM radio, and shorten the pull rod line if there is strong radio interference. The external soft antenna, on the other hand, is designed to enhance the reception of shortwave radio stations.

Raddy RF760 | Sleep Timer
Sleep Timer

It can be set to automatically shut down after 10-90 minutes of power on. Also, it can be set to automatically turn on, set to lock or mute.

Raddy RF760 | Useful Strap & Easy Clip

SPECIFICATIONS

  • FM 1: 64.0-108MHZ | 1.5uv | STEREO/MONO | FM Band (30dB noise limit sensitivity)
  • FM 2: 76.0-108MHZ| 1.5uv | STEREO/MONO | FM Band (30dB noise limit sensitivity)
  • FM 3: 87.5-108MHZ | 1.5uv | STEREO/MONO | FM Band (30dB noise limit sensitivity)
  • AM: 520-1710KHZ | 2mV/M | AM | MW Band (20dB noise limit sensitivity)
  • SW: 2.00-30.00MHZ| 30uV | AM/SSB/LSB | SW Band Shortwave (26dB noise limit sensitivity; under AM mode)
  • CB: 25.00-28.00MHZ| 10dBuV | AM/NFM | City Band Urban Band (12dB noise limit sensitivity)
  • AIR: 118.00-138.00MHZ | 3uV | AM | Air Band (12dB noise limit sensitivity)
  • VHF UHF: 20.000-520MHZ | -9dBuV | NFM | Wide Range (20dB noise limit sensitivity)
  • VHF: 30.00-223.00MHZ| -8dBuV | NFM | Wide Range (20dB noise limit sensitivity)
  • VHF: 144.00-148.00MHZ | -8dBuV | NFM | Amateur Radio Band (20dB noise limit sensitivity)
  • VHF: 156.025-163.275MHZ | -8dBuV | NFM | International Maritime Channel (20dB noise limit sensitivity)
  • UHF: 430.00-520.00MHZ| -8dBuV | NFM | Amateur Radio Band (20dB noise limit sensitivity)
  • WX: 162.400-162.550MHZ | -8dBuV | NFM | North American Meteorological Band NOAA WX (20dB noise limit sensitivity) Alert triggered sensitivity -19dBuV
  • Product dimensions: 4.37 x 2.36 x 0.79’’ / 11.1 x 6 x 2CM
  • Lithium battery: BL5C 1000mAH 3.7v 3.8WH
  • Loudspeaker: Ф40MM 8Ω 1W
  • Headphone output: 3.5MM stereo input
  • External antenna hole: 3.5MM
  • Storage Capacity:700 stations in total(FM: 100, MW: 100, SW: 100, AIR: 100, CB: 100, VHF/UHF: 100, UBD: 100)

Other features:

  • 1. Full band DSP digital demodulation - improve receiving sensitivity, selectivity and anti-IMAGE interference ability.
  • 2. Independent selection between USB ans LSB.
  • 3. Automatic search,manual search, and instant recall by channel.
  • 4. High speed scanning, automatically scan radio station or pre-stored frequency.
  • 5. Shuttle tuning, shuttle stepping setting (support 10Hz), adjustable shuttle stepping digit (for quick selection of frequency).
  • 6. Squelch levels: 10 adjustable squelch levels in SW, VHF, UHF, AIR, CB, SQ band.
  • 7. Multiple values of frequency steps each band.
  • 8. Temperature/Fahrenheit display.
  • 9. Settable noise limit ratio and sensitivity reference.
  • 10. Come with a USB type-C charging port.

Bandwidth Adjust

  • MW/AM (medium wave): 1.80 kHz, 1.00 kHz, 6.00 kHz, 4.00 kHz, 3.00 kHz, 2.50 kHz, 2.00 kHz
  • FM (frequency modulation): 40 kHz, 110 kHz, 84 kHz, 60 kHz (should be 40 kHz for monophonicand 60 kHz for stereo in the US).
  • SW (short wave): 3 kHz, 2.50 kHz, 2.00 kHz, 1.80 kHz, 1.00 kHz, 6.50 kHz, 4.00 kHz (should be 3.0 kHz for SSB)
  • AIR (airband): 3.00 kHz, 2.50 kHz, 2.00 kHz, 1.80 kHz, 1.00 kHz, 6.00 kHz, 4.00 kHz
  • CB (urban band): 3.00 kHz, 2.50 kHz, 2.00 kHz, 1.80 kHz, 1.00 kHz, 6.00 kHz, 4.00 kHz (The citizens band (CB) has the 2 modes, AM and FM. In AM, the bandwidth should be set for 8.0 kHz. In FM, the bandwidth should be set for 5 kHz.)
  • VHF/UHF: 1.70 kHz, 4.50 kHz, 3.75 kHz, 2.50 kHz (VHF and UHF bands can be used for commercial an amateur radio channels. The commercial radios will almost always be FM, with a bandwidth available of 7.5 kHz for narrowband and 15 kHz for wideband.)
  • UBD (customized): 1.70 kHz, 4.50 kHz, 3.75 kHz and 2.50 kHz
  • WX (north American weather bands): needs to be set to 15 kHz.

Step Option

  • FM: 50.0 kHz, 10.0 kHz, 100.0 kHz
  • MW/AM: 10.0 kHz, 5.0 kHz (US) | 9.0 kHz, 3.0 kHz (EU)
  • SW: 5.0 kHz, 1.00 kHz, 0.10 kHz, 0.02 kHz, 0.01 kHz
  • AIR: 25.0 kHz, 12.5 kHz, 8.3 kHz
  • CB: 5.00 kHz, 1.00 kHz, 0.10 kHz, 0.02 kHz, 0.01 kHz
  • VHF/UHF/UBD: 25.0 kHz, 12.5 kHz, 7.5 kHz, 5.0 kHz, 1.0 kHz

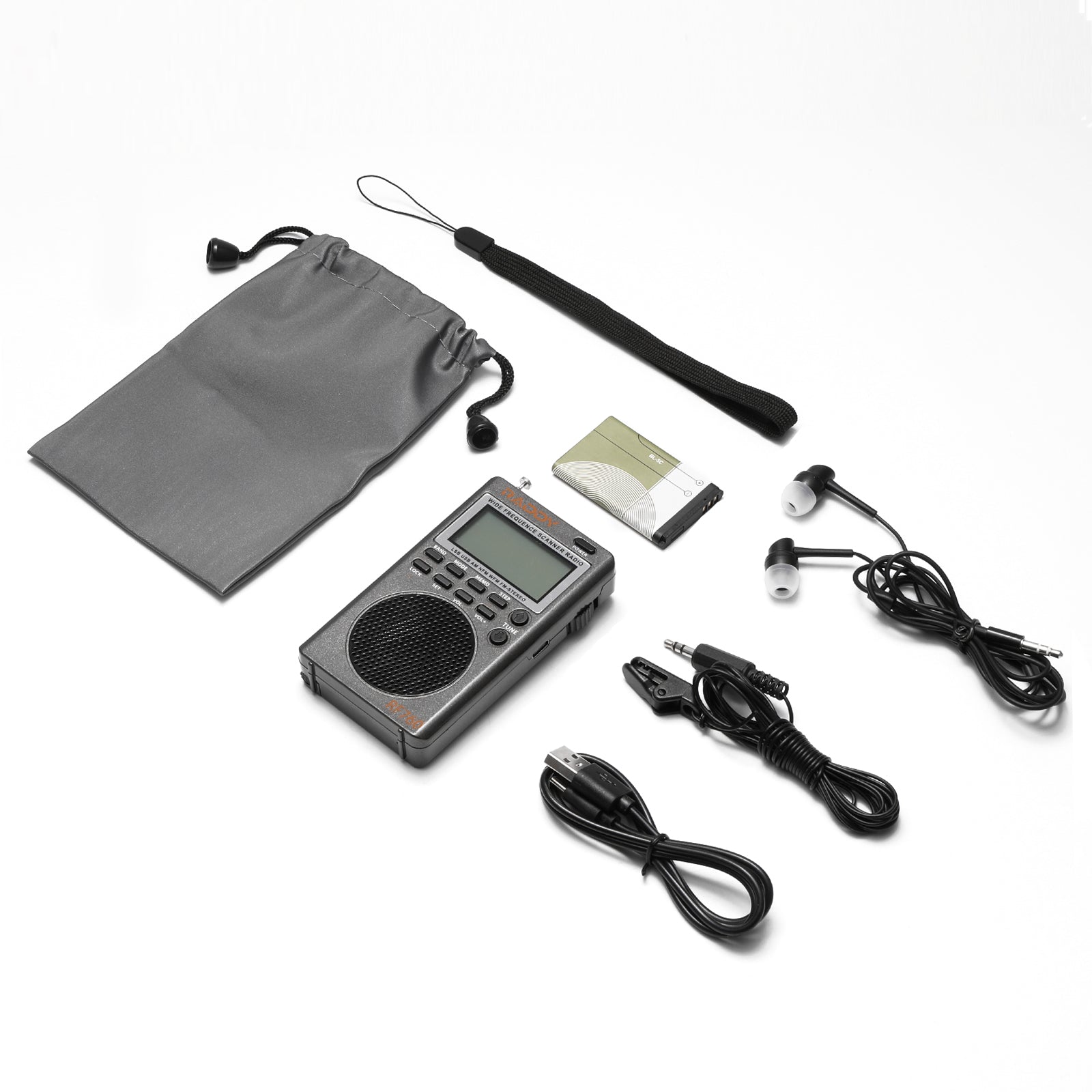

What’s in the box?

  • 1 x RF760 radio
  • 1 x In-ear headset
  • 1 x BL-5C lithium battery
  • 1 x USB-C cable
  • 1 x User manual
  • 1 x Wrist trap
  • 1 x Storage bag
