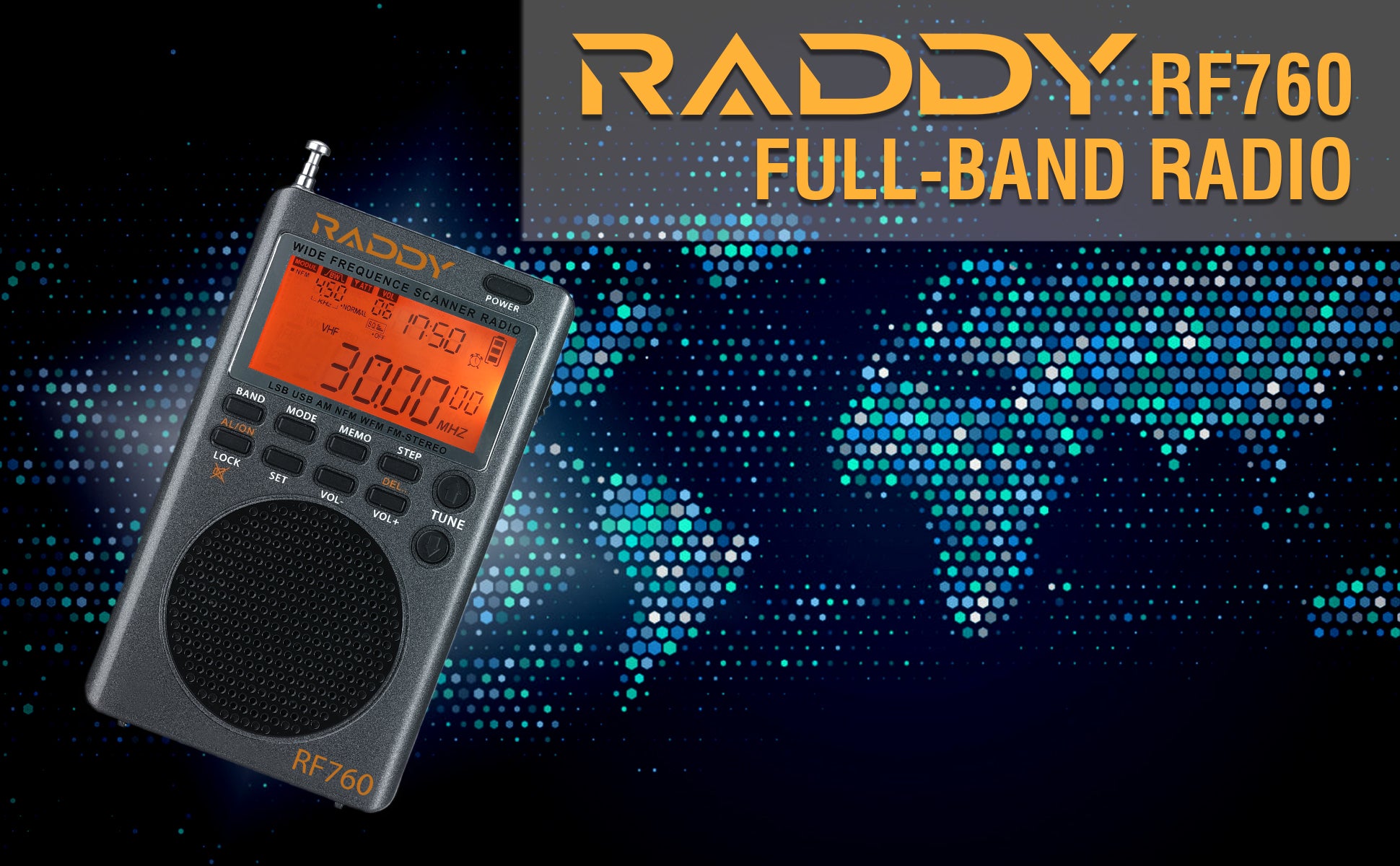

Upgraded Raddy RF760: We added an adjustable bandwidth in SSB mode, an external 9.7ft wire antenna with a 3.5mm connector to improve SW reception, and upgraded sound quality for a better listening experience.
Full-band Radio with SSB: This tiny radio can receive AM, FM, CB, WX, and NOAA Weather bands plus Alert, Shortwave (2-30MHz) with SSB and UHF, VHF, and Airband. Using SSB, it can reach long-range and pick up worldwide stations when internet or satellite is not available.
Ideal Radio for SW Listeners! This radio allows fully automatic or manual search and storage of up to 700 stations. It also features a knob for fine-tuning stations, making it easy to select the exact channel you want.
EDC and Bug-Out Bags: The RF760 world band shortwave radio is surprisingly small and light. Its dimension is 4.4 x 2.4 x 0.8’’ / 11.1 x 6 x 2CM while only weighing 0.46lbs/0.25kg.
Two 3.5mm Accessories: The RF760 comes with an earphone for private listening and a 9.7ft external wire antenna for more stable reception.
Check out and download the user manual on the download area.
18 Months Manufacturer's Warranty.
Click Here to learn more.
14-Day Hassle-Free Return.
Click Here to learn more details.
5-7 days shipping time.
Click Here to learn more.
Please check it at the end of product description.
Why Choose Raddy RF760?
- Add adjustable bandwidth in SSB mode
- Add an external wire antenna with a 3.5mm connector to improve the SW reception quality
- Upgrade the sound quality for a better listening experience
- Include NOAA broadcast and weather hazards alert
RF760 uses a standard 1000mAh BL-5C battery, which is safe and easy to find in the market. In addition, you can recharge the radio directly by using the included USB-C cable.
This SSB shortwave radio comes with a built-in extendable 22'' / 56CM antenna and a supplied external soft antenna with a 3.5mm connector. Pull out the rod antenna when you listen to FM radio, and shorten the pull rod line if there is strong radio interference. The external soft antenna, on the other hand, is designed to enhance the reception of shortwave radio stations.
It can be set to automatically shut down after 10-90 minutes of power on. Also, it can be set to automatically turn on, set to lock or mute.
SPECIFICATIONS
- FM 1: 64.0-108MHZ | 1.5uv | STEREO/MONO | FM Band (30dB noise limit sensitivity)
- FM 2: 76.0-108MHZ| 1.5uv | STEREO/MONO | FM Band (30dB noise limit sensitivity)
- FM 3: 87.5-108MHZ | 1.5uv | STEREO/MONO | FM Band (30dB noise limit sensitivity)
- AM: 520-1710KHZ | 2mV/M | AM | MW Band (20dB noise limit sensitivity)
- SW: 2.00-30.00MHZ| 30uV | AM/SSB/LSB | SW Band Shortwave (26dB noise limit sensitivity; under AM mode)
- CB: 25.00-28.00MHZ| 10dBuV | AM/NFM | City Band Urban Band (12dB noise limit sensitivity)
- AIR: 118.00-138.00MHZ | 3uV | AM | Air Band (12dB noise limit sensitivity)
- VHF UHF: 20.000-520MHZ | -9dBuV | NFM | Wide Range (20dB noise limit sensitivity)
- VHF: 30.00-223.00MHZ| -8dBuV | NFM | Wide Range (20dB noise limit sensitivity)
- VHF: 144.00-148.00MHZ | -8dBuV | NFM | Amateur Radio Band (20dB noise limit sensitivity)
- VHF: 156.025-163.275MHZ | -8dBuV | NFM | International Maritime Channel (20dB noise limit sensitivity)
- UHF: 430.00-520.00MHZ| -8dBuV | NFM | Amateur Radio Band (20dB noise limit sensitivity)
- WX: 162.400-162.550MHZ | -8dBuV | NFM | North American Meteorological Band NOAA WX (20dB noise limit sensitivity) Alert triggered sensitivity -19dBuV
- Product dimensions: 4.37 x 2.36 x 0.79’’ / 11.1 x 6 x 2CM
- Lithium battery: BL5C 1000mAH 3.7v 3.8WH
- Loudspeaker: Ф40MM 8Ω 1W
- Headphone output: 3.5MM stereo input
- External antenna hole: 3.5MM
- Storage Capacity：700 stations in total（FM: 100, MW: 100, SW: 100, AIR: 100, CB: 100, VHF/UHF: 100, UBD: 100)
Other features:
- 1. Full band DSP digital demodulation - improve receiving sensitivity, selectivity and anti-IMAGE interference ability.
- 2. Independent selection between USB ans LSB.
- 3. Automatic search,manual search, and instant recall by channel.
- 4. High speed scanning, automatically scan radio station or pre-stored frequency.
- 5. Shuttle tuning, shuttle stepping setting (support 10Hz), adjustable shuttle stepping digit (for quick selection of frequency).
- 6. Squelch levels: 10 adjustable squelch levels in SW, VHF, UHF, AIR, CB, SQ band.
- 7. Multiple values of frequency steps each band.
- 8. Temperature/Fahrenheit display.
- 9. Settable noise limit ratio and sensitivity reference.
- 10. Come with a USB type-C charging port.
Bandwidth Adjust
- MW/AM (medium wave): 1.80 kHz, 1.00 kHz, 6.00 kHz, 4.00 kHz, 3.00 kHz, 2.50 kHz, 2.00 kHz
- FM (frequency modulation): 40 kHz, 110 kHz, 84 kHz, 60 kHz (should be 40 kHz for monophonicand 60 kHz for stereo in the US).
- SW (short wave): 3 kHz, 2.50 kHz, 2.00 kHz, 1.80 kHz, 1.00 kHz, 6.50 kHz, 4.00 kHz (should be 3.0 kHz for SSB)
- AIR (airband): 3.00 kHz, 2.50 kHz, 2.00 kHz, 1.80 kHz, 1.00 kHz, 6.00 kHz, 4.00 kHz
- CB (urban band): 3.00 kHz, 2.50 kHz, 2.00 kHz, 1.80 kHz, 1.00 kHz, 6.00 kHz, 4.00 kHz (The citizens band (CB) has the 2 modes, AM and FM. In AM, the bandwidth should be set for 8.0 kHz. In FM, the bandwidth should be set for 5 kHz.)
- VHF/UHF: 1.70 kHz, 4.50 kHz, 3.75 kHz, 2.50 kHz (VHF and UHF bands can be used for commercial an amateur radio channels. The commercial radios will almost always be FM, with a bandwidth available of 7.5 kHz for narrowband and 15 kHz for wideband.)
- UBD (customized): 1.70 kHz, 4.50 kHz, 3.75 kHz and 2.50 kHz
- WX (north American weather bands): needs to be set to 15 kHz.
Step Option
- FM: 50.0 kHz, 10.0 kHz, 100.0 kHz
- MW/AM: 10.0 kHz, 5.0 kHz (US) | 9.0 kHz, 3.0 kHz (EU)
- SW: 5.0 kHz, 1.00 kHz, 0.10 kHz, 0.02 kHz, 0.01 kHz
- AIR: 25.0 kHz, 12.5 kHz, 8.3 kHz
- CB: 5.00 kHz, 1.00 kHz, 0.10 kHz, 0.02 kHz, 0.01 kHz
- VHF/UHF/UBD: 25.0 kHz, 12.5 kHz, 7.5 kHz, 5.0 kHz, 1.0 kHz
What’s in the box?
- 1 x RF760 radio
- 1 x In-ear headset
- 1 x BL-5C lithium battery
- 1 x USB-C cable
- 1 x User manual
- 1 x Wrist trap
- 1 x Storage bag
VHF/UHF/WB/AIR
AM: 153-1710kHz
SW: 2-30MHz
CB: 25.00-28.00MHz
VHF & UHF: 20.000-999MHZ
WX: 162.400-162.550 MHz
AIR: 118.00-138.00MHz
AM: 1mV/m
SW: 20μV
CB: 10dBμV
VHF: -9dBμV
UHF: -9dBμV
WX:-9dBμV
AIR: 1μV
VHF/UHF/WB/AIR
AM: 520-1710kHz
SW: 3.2-30MHz
CB: 25.00-28.00MHz
VHF & UHF: 25.000-999MHZ
WX: 162.400-162.550 MHz
AIR: 118.00-138.00MHz
AM: 12mV/m
SW: 30dBμV
CB: 10dBμV
VHF: 1μV
UHF: 1μV
WX:5μV
AIR: 5μV
VHF/WB/AIR
AM: 520-1710KHZ
SW:3.20-21.95MHZ
VHF: 30.000-199.975MHZ
WB:162.400-162.550MHZ
AIR:118.00-138.00MHZ
VHF≤8dBμV
AM≤86dBμV
SW≤40dBμV
AIR≤8dBμV
VHF/UHF/WB/AIR
AM: 520-1710kHz
SW: 2-30MHz
CB: 25.00-28.00MHz
VHF & UHF: 20.000-520MHZ
WX: 162.400-162.550 MHz
AIR: 118.00-138.00MHz
AM: 2mV/M
SW: 30μV
CB: 10dBμV
VHF: -8dBμV
UHF: -8dBμV
WX:-8dBμV
AIR: 3μV
VHF/WB
AM: 520-1710KHZ
SW:4.750-21.850MHZ
VHF: 30.000-199.975MHZ
WB:162.400-162.550MHZ
VHF≤8dBμV
AM≤86dBμV
SW≤40dBμV
SW/WB
AM: 520-1710KHz
SW: 4.75-21.85MHz
WB: 162.40-162.55MHz
AM≦86dBμV
SW≦30dBμV
WB≦18dBμV
